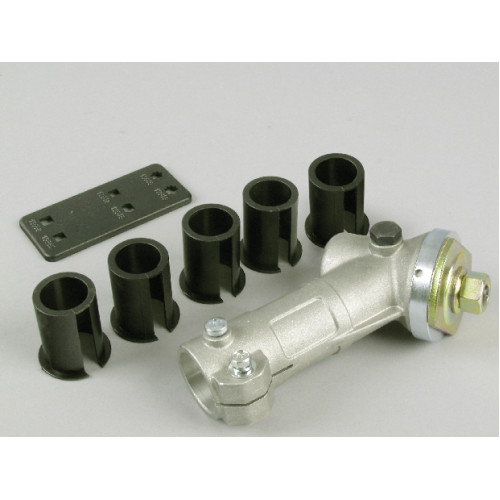

ANGLE TRANSMITTER Universal
Suitable for many left-turning brushcutters and brushcutters with straight shaft. Suitable for brush cutters with a maximum cubic capacity of 45 cm³ and a maximum power of 1.1 kW.
The permitted maximum engine speed is 10,000 1/min.
Suitable for shaft tube diameter of 24.0 -28.0 mm.
- Output: M10x1.25 LGA,
- Five plastic tube adapter sleeves (Ø 24, 25, 25.4, 26 u. 27 mm - receptacle).
- Identification template for the drive shaft included.
ATTENTION!
Please note that a corresponding shaft adapter is required for assembly.
These are not included in the scope of delivery!
Suitable adapters (templates index):
A = Order No. 6-636 (9 teeth)
B = Order No. 6-635 (8 teeth)
C = Order No. 6-634 (7 teeth)
D = Order-No. 6-6421 (Oval 6.5 mm)
E = Order-No. 6-642 (Oval 5.5 / 7.1 mm)
F = Order No. 6-637 (10 teeth)
G = Order-No. 6-640 (square 6.0 mm)
H = Order-No. 6-638 (4-edge 5.4 mm)
I = Order No. 6-639 (4-edge 5.1 / 5.2 mm)
Suitable for many left-turning brushcutters and brushcutters with straight shaft. Suitable for brush cutters with a maximum cubic capacity of 45 cm³ and a maximum power of 1.1 kW.
The permitted maximum engine speed is 10,000 1/min.
Suitable for shaft tube diameter of 24.0 -28.0 mm.
- Output: M10x1.25 LGA,
- Five plastic tube adapter sleeves (Ø 24, 25, 25.4, 26 u. 27 mm - receptacle).
- Identification template for the drive shaft included.
ATTENTION!
Please note that a corresponding shaft adapter is required for assembly.
These are not included in the scope of delivery!
Suitable adapters (templates index):
A = Order No. 6-636 (9 teeth)
B = Order No. 6-635 (8 teeth)
C = Order No. 6-634 (7 teeth)
D = Order-No. 6-6421 (Oval 6.5 mm)
E = Order-No. 6-642 (Oval 5.5 / 7.1 mm)
F = Order No. 6-637 (10 teeth)
G = Order-No. 6-640 (square 6.0 mm)
H = Order-No. 6-638 (4-edge 5.4 mm)
I = Order No. 6-639 (4-edge 5.1 / 5.2 mm)
